aluminum powder ball mill

Introduction

Aluminum powder ball mills are primarily suitable for processing various non-flammable and non-explosive mineral materials with a Mohs hardness  of 9.3 or less and a humidity of 6% or less, particularly for metallic pigments, powder coatings, inks, plastic masterbatches, printing, imitation gold  paper, imitation gold cards, gold films, and textiles. However, they may oxidize and turn black when used with water-based paints and paints containing acids and alkalis.They are not recommended for applications  requiring acid and alkali resistance or exposure to rain.

Ball Mill Structure

1. Large-diameter double-row spherical roller bearings

 2. Tapered discharge end

3. Integral steel base frame

4. Drum feeder replaces the combined feeder

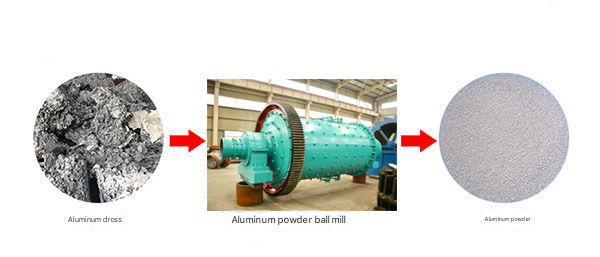

Operating Principle of Aluminum Powder Ball Mill

The aluminum powder ball mill is a horizontal cylindrical rotating device with a cross drive on the central axis. Aluminum foil enters the mill evenly  from the feed hole. The mill is equipped with wear-resistant, corrosion-resistant and chemical-resistant bearing steel balls. Steel balls of different  specifications are loaded inside the mill, and then a special chemical formula is added. The centrifugal force generated  by   the rotation of the cylinde    the steel balls to a high height and then falls, which has a heavy impact and grinding effect on the material.

Product Advantages

1. A grooved annular liner increases the contact surface between the ball and the ore, enhancing the grinding effect on aluminum powder.

2. The precision-machined large ring gear of the ball mill provides greater meshing and high transmission efficiency.

3. Rolling bearings replaced with sliding bearings – resulting in lower friction, faster startup, and greater energy efficiency.

4. Professionally designed and rationally graded steel balls – ensuring more thorough material grinding.

5. Integrated frame – ensuring reliable and stable operation.

6. High concentricity accuracy ensures a bearing lifespan of over eight years, ensuring a durable machine and saving energy.

7. Circulating water for repeated cooling replaces external water cooling, achieving zero wastewater discharge.

8. The aluminum powder ball mill can be operated by one person, saving investment.

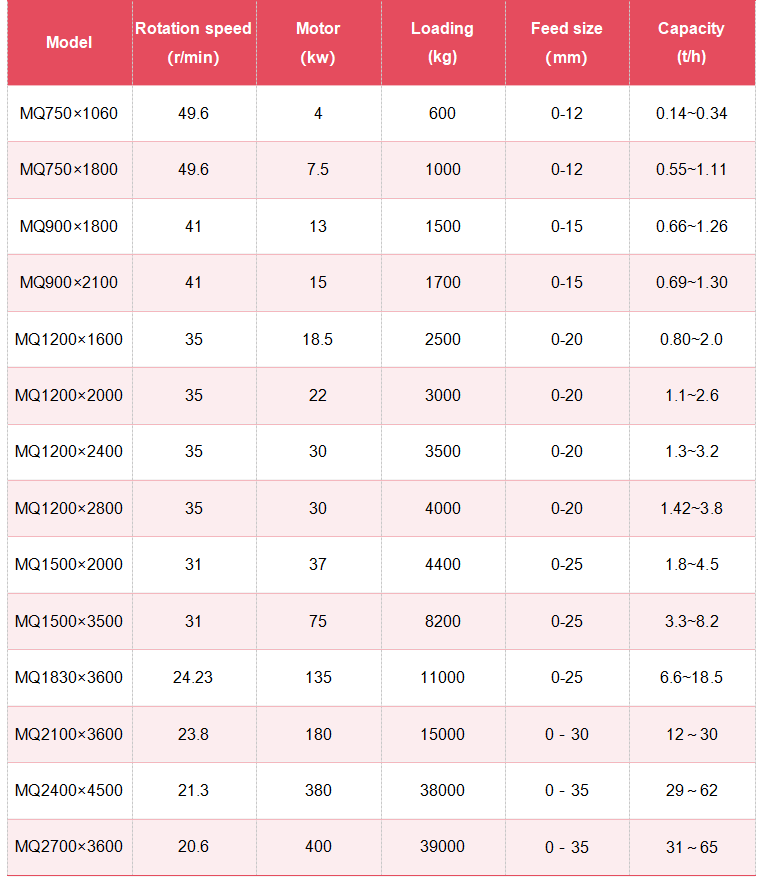

Specifications
