- GF flotation machine

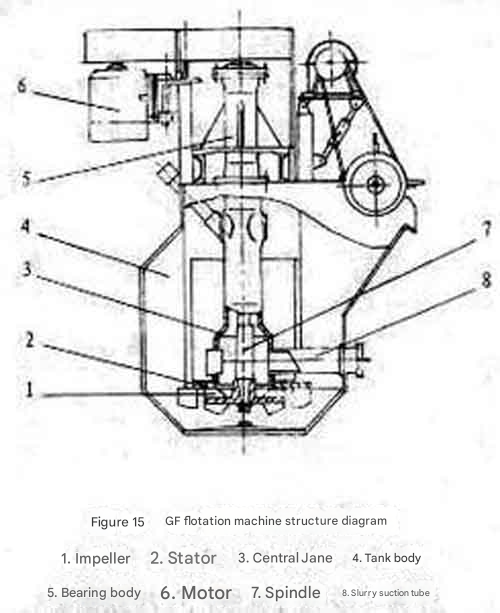

The GF flotation cell mainly consists of an impeller, stator, main shaft, central cylinder, trough, slurry suction pipe, bearing, and motor. This is a brief structural overview.
GF flotation machine
Effective Volume: 0.37-8m³
Production Capacity: 0.2-8m³/min
Applications: Non-ferrous and ferrous metals, coal fluorite, talc, etc.
Product Introduction: The GF flotation cell mainly consists of an impeller, stator, main shaft, central cylinder, trough, slurry suction pipe, bearing, and motor. A brief structural overview is provided.
The GF flotation cell can also be combined with a JJF flotation cell. The GF flotation cell serves as the suction trough for the roughing, sweeping, and cleaning sections, while the JJF serves as the direct flow trough. Mounted horizontally, a foam pump is not required for the return of the middlings.
I. Product Introduction
The GF flotation cell mainly consists of an impeller, stator, main shaft, central cylinder, trough, slurry suction pipe, bearing, and motor. This is a brief structural overview.
The GF flotation cell can also be combined with a JJF flotation cell. The GF flotation cell serves as the suction trough for the roughing, sweeping, and cleaning sections, while the JJF serves as the direct flow trough. Mounted horizontally, the return of the middlings does not require a foam pump.
II. Scope of Application
This is a self-priming, self-priming mechanical agitator flotation cell suitable for medium- and small-scale enterprises separating non-ferrous, ferrous, precious metals, and non-metallic minerals. The particle size range for this machine is <0.074 mm, accounting for 45% to 90%, and the slurry concentration is <45%.
3. Product Features
(1) Self-priming air - the self-priming air volume can exceed 1.2m/m.min;
(2) Self-priming slurry - it can self-prime ore and foam ore from outside the machine, and the flotation operation can be configured horizontally;
(3) Good slurry circulation and stable liquid level - the slurry in the tank does not rotate or flip;
(4) High sorting efficiency - improves the recovery rate of coarse and fine particles;
(5) Low power - saves 15-20% of energy compared to similar flotation machines of the same specifications, while being able to absorb sufficient air and slurry.
(6) Long life of wearing parts - especially the life of the impeller and stator is more than doubled that of similar flotation machines.
Data
Model | Volume | cell size | Power | capacity | power | Air flow sucked | singe cell weight |
m3 | mm | kw | m3/min | kw | m3/m2·min | kg | |
GF-0.35 | 0.35 | 700×700×730 | 1.5 | 0.1-0.2 | 0.75 | 1.2 | 470 |
GF-0.7 | 0.7 | 900×900×900 | 3 | 0.1-0.4 | 1.1 | 1.2 | 932 |
GF-1.1 | 1.1 | 1100×1100×1000 | 5 | 0.2-0.5 | 1.1 | 1.2 | 1370 |
GF-2 | 2 | 1400×1400×1150 | 7.5 | 0.3-1.0 | 1.5 | 1.2 | 1750 |
GF-3 | 3 | 1500×1850×1200 | 11 | 0.5-1.5 | 1.5 | 1.2 | 2230 |
GF-4 | 4 | 1600×2150×1250 | 15 | 0.5-2 | 1.5 | 1.2 | 2585 |
GF-6 | 6 | 2000×2500×1300 | 22 | 1-3 | 1.5 | 1.2 | 3300 |
GF-8 | 8 | 2200×2900×1400 | 30 | 1-4 | 1.5 | 1.2 | 4130 |
GF-10 | 10 | 2200×2900×1700 | 30 | 2-6 | 1.5 | 1.2 | 4500 |
GF-16 | 16 | 2850×3800×1700 | 45 | 3-8 | 2.2 | 1.2 | 8320 |
GF-20 | 20 | 2850×3800×2000 | 45 | 4-10 | 2.2 | 1.2 | 8670 |
GF-24 | 24 | 3150×4150×2000 | 55 | 5-12 | 2.2 | 1.2 | 8970 |
GF-28 | 28 | 3150×4150×2300 | 55 | 5-14 | 2.2 | 1.2 | 9480 |
GF-42 | 42 | 3600×4800×2650 | 75 | 8-20 | 3 | 1.2 | 19400 |
