- sawtooth wave jig
The sawtooth jig is a new type of energy-saving and environmentally friendly gravity separation equipment developed and promoted in recent years.
sawtooth wave jig
Product Overview
The sawtooth jig is a new type of energy-saving and environmentally friendly gravity separation equipment developed and promoted in recent years. Due to its large processing capacity, wide separation size range, high recovery rate, and simple maintenance, it is widely used for separating a variety of minerals, including placer gold, tungsten, tin, iron, manganese, titanium, chromium, sulfur, coal, and diamonds; recovering smelting slag such as manganese slag, chromium slag, and stainless steel slag; and recovering and treating metals from mine tailings.
Our improved JT2-2 sawtooth jig is widely used in gold separation, roughing, scavenging, and concentrating operations onboard concentrator vessels. Its combined use effectively saves space and improves concentrating efficiency. The improved JT2-2A and JT4-2A sawtooth jigs for large particles, with feed sizes less than 60mm and over-screen discharge, are suitable for the separation of large-particle ores such as barite, manganese, and iron.

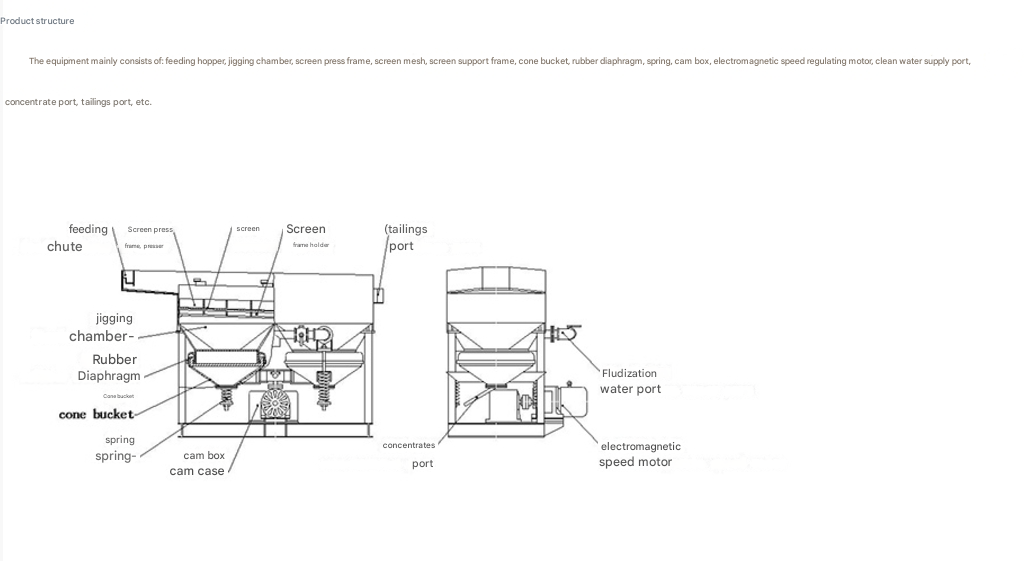

Product Structure
The equipment primarily consists of a feed hopper, jig chamber, screen press, screen mesh, screen support frame, cone bucket, rubber diaphragm, spring, cam box, electromagnetic speed control motor, fresh water supply port, concentrate port, and tailings port.
Improved Sawtooth Wave Jig
1. Simple equipment and easy maintenance.
2. Widely used for sorting various minerals, including placer gold, tungsten, tin, iron, manganese, titanium, chromium, sulfur, coal, and diamonds.
3. Energy-saving, environmentally friendly new gravity separation equipment.
4. High processing capacity, wide particle size range, and high recovery rate.
Data
| Model | JT-0.57 | JT1-1 | JT2-2 | JT3-1 | JT4-2 | JT5-2 | |
| Jigging room | Cross-section Shape | Trapezoid | Trapezoid | rectangle | Trapezoid | rectangle | Trapezoid |
| 长×宽 (mm) | 450～750×950 | 450～900×1500 | 1070×1070 | 960～2000×1950 | 1510×1510 | 1200～2000×3150 | |
| Number of columns | unit | unit | unit | unit | unit | unit | |
Total number of rooms (rooms) | 1 | 1 | 2 | 1 | 2 | 2 | |
Single Room Area (m²) | 0.57 | 1 | 1.14 | 3.3 | 2.43 | 2.12(single room) 2.77(double room) | |
total area (m²) | 0.57 | 1 | 2.28 | 3.3 | 4.86 | 5 | |
| Stroke coefficient | 0.57 | 0.64 | 0.45 | 1 | 0.58(Single power) 0.45(Dual power) | 0.58(Single power) 0.45(Dual power) | |
| feed size(mm) | 5 | 5 | 10 | <20 | 8, Automatic discharge of ore on screen<35 | 8, Automatic discharge of ore on screen<35 | |
| capacity (t/h) | 1～3 | 2～3 | 4～8 | 10～15 | 12～16 | 10～20 | |
water consumption (m³h) | 1～2 | 2～3 | 2～4 | 3～6 | 4～8 | 5～10 | |
| Diaphragm | stroke (mm) | 12,17,21 | 12,17,21 | 12,17,21 | 10～47 可调 | 10～30 | 15,20,25 |
| rush(min⁻1) | 60～156 adjustable | 60～156 adjustable | 60～156 adjustable | 80～100 adjustable | 80～120 adjustable | 80～120 adjustable | |
| motor | Model | YCT 132-4B | YCT 100L-6 | YCT32-4 | YCT-4B | YCT 160-4B | YCT 200-4A |
| power (kw) | 1.5 | 2.2 | 3 | 5.5 | 5.5 (双动力) 7.5 (单动力) | 5.5 (双动力) 7.5 (单动力) | |
| size (mm) | 1530×780×1550 | 2060×1112×1890 | 2870×1520×1880 | 2662×2000×3030 | 4240×1990×2750 | 3940×2006×2580 | |
weight (kg) | 612 | 989 | 1637 | 3260 | 3500 | 3854 | |
