- gravity centrifuge
to address the cumbersome startup and shutdown discharge operations of older models, which was labor-intensive and time-consuming, our company has developed an automatic centrifuge discharge system to automate production. A single button controls all operations.
gravity centrifuge

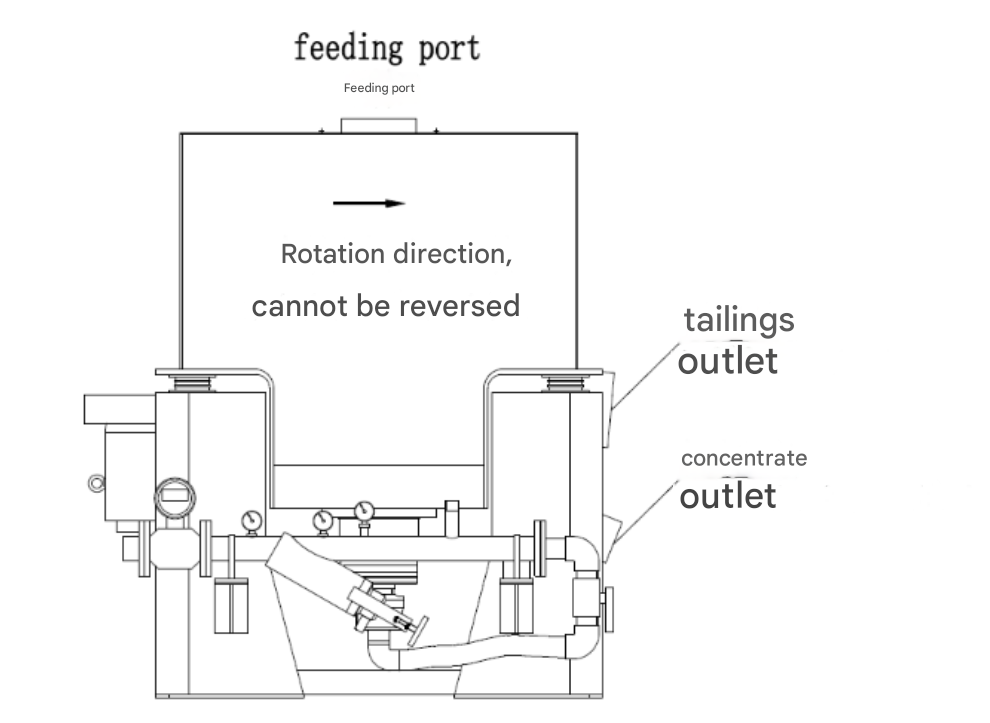

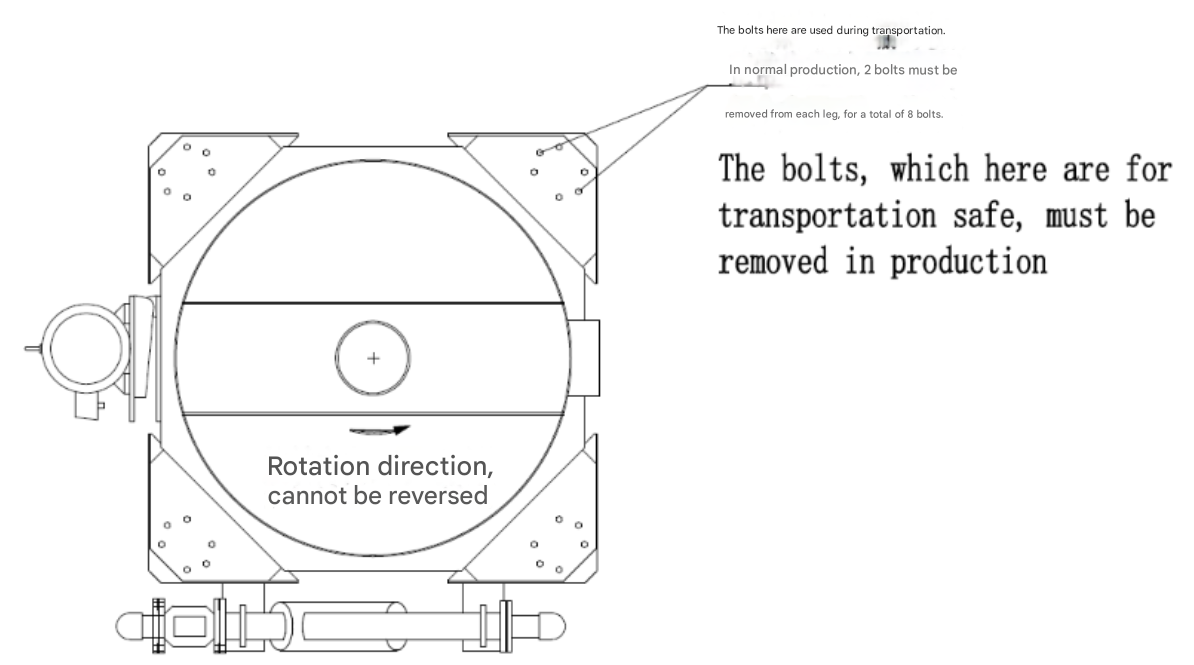

Product Structure
To address the cumbersome startup and shutdown discharge operations of older models, which was labor-intensive and time-consuming, our company has developed an automatic centrifuge discharge system to automate production. A single button controls all operations.
Notes: 1. Automatic discharge: The equipment has a built-in cleaning function, eliminating the need for manual cleaning during shutdown. 2. The equipment operates intermittently, with the timing of each concentrate discharge controlled by on-site workers.
Data
| model | 三足D20 | 四足D30 | 四足D60 | 四足D80 | 四足D100 |
| capacity (T/H) | 1-3 | 2-7 | 15-30 | 30-70 | 60-100 |
| feed size (mm) | 00-2 | 00-3 | 00-5 | 00-5 | 00-6 |
| Feed concentration | <50% | <50% | <50% | <50% | <50% |
| Backwash water volume(m3/H) | 1-2 | 4-6 | 10-20 | 20-35 | 40-60 |
| Concentrate production(kg) | 2-3 | 8-15 | 25-40 | 60-70 | 70-80 |
| Backwash water pressure(Mpa) | 0.06-0.1 | 0.1-0.15 | 0.1-0.2 | 0.1-0.2 | 0.1-0.2 |
| power (kw) | 0.75 | 2.2 | 4 | 11 | 18.5 |
| size (mm) | 800×700×980 | 1280×950×1120 | 1720×1500×1760 | 2200×1950×2100 | 2460×2150×2230 |
| weight (kg) | 270 | 435 | 1500 | 2680 | 3780 |
Product key description, this is a very good product description, detailing our product use, product characteristics
