- LSM-B Disc Nano Grinder
The LSM's horizontal eccentric disc agitator drives the grinding media throughout the entire grinding drum, while a highly efficient centrifugal separation system effectively separates the product from the grinding media.
LSM-B Disc Nano Grinder

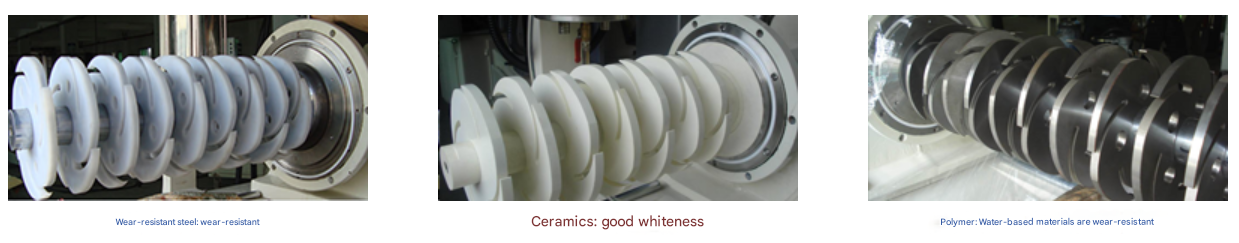

The LSM's horizontal eccentric disc agitator drives the grinding media throughout the entire grinding drum, while a highly efficient centrifugal separation system effectively separates the product from the grinding media. This ensures the machine's operation even with highly viscous products. Depending on the specific requirements of the product, the machine can be designed to accommodate various materials (such as polyurethane, polymer, ceramic, rubber, freeze-cast, and wear-resistant steel).
Product Details
LSM-B Series Universal Nano Grinder: Single-pass universal disc grinder.
Suitable fineness: 15μm - 2μm
Grinding media size: ≥ 0.6mm
This machine is flexible, easy to clean, and maintain, making it suitable for grinding small and multi-batch products.
Technical Parameters
| Model | Mass production level | ||||||||
| LSM-5L | LSM-15L | LSM-20L | LSM-30L | LSM-50L | LSM-60L | LSM-150L | LSM-500L | LSM-1000L | |
| Amplification factor [-] | 0.6 | 1-1.2 | 1.8-2 | 3.5 | 6 | 8 | 12 | 20 | 50 |
| Sanding drum capacity[l] | 5 | 15 | 20 | 30 | 50 | 60 | 150 | 500 | 1000 |
| Processing batch[Vh] | 20-150 | 35-400 | 50-600 | 150-1000 | 200-1200 | 300-1500 | 600-3500 | >2000 | >4000 |
| Sanding media[mm] | 0.6-2.0 | 0.6-20 | 0.6-20 | 0.6-20 | 0.6-20 | 0.6-20 | 0.6-20 | 0.6-20 | 0.6-20 |
| Power[kw] | 7.5 | 15 | 18.5 | 22 | 37.5 | 45 | 75 | 160 | 315 |

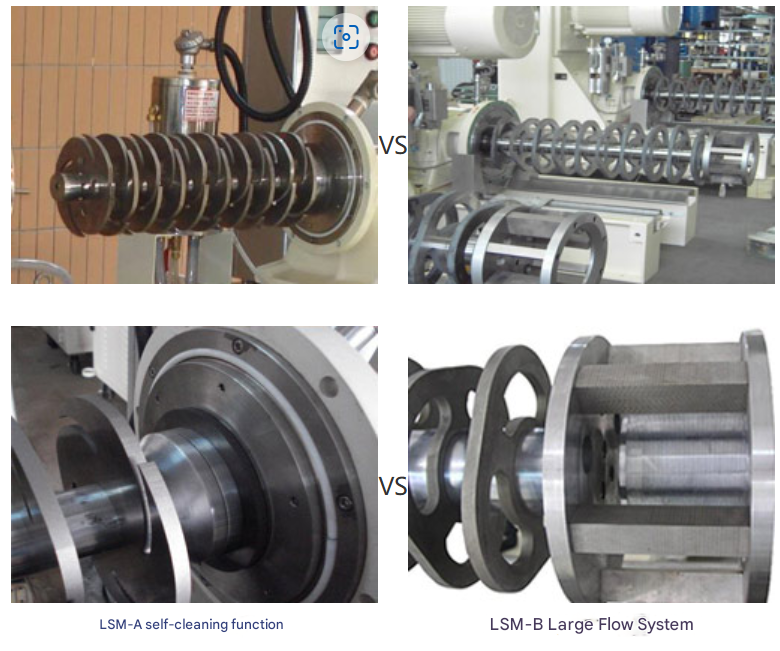

Design Concept
Technology—Setting New Standards in Dispersion and Fine Grinding
LSM-B Series Disc Nano Grinders for Continuous/Circulating Grinding
Applications
LSM-B Series High-Efficiency Disc Nano-Grinding Mill - High-Quality Production, Wide Applications.
Applications: Water-soluble, oil-soluble, and non-polluting products, suitable for machinery and engineering applications across various industries and applications.
The Grinding and Dispersing Division provides equipment and engineering services for the following industries and applications.
● Carbon black
● Automotive topcoats and primers
● Marine paints, electrophoretic paints, metal paints, coil paints
● Water-based and solvent-based wood paints
● Pesticide suspension concentrates
● Latex paints, sulfur, and zinc oxide
● Gravure and flexographic inks
● Papermaking, calcium carbonate, and fillers
● Leather
