- Kaolin rotary dryer
Kaolin dryers are widely used in the building materials, metallurgy, chemical, and cement industries to dry materials such as ore concentrate, slag, limestone, coal powder, slag, clay, and kaolin. They are particularly effective for drying kaolin, clay, and kaolin. Our company has improved the new generation of kaolin/clay/bentonite dryers to achieve greater energy efficiency and reduce consumption.
Kaolin rotary dryer
Kaolin dryers are widely used in the building materials, metallurgy, chemical, and cement industries to dry materials such as ore concentrate, slag, limestone, coal powder, slag, clay, and kaolin. They are particularly effective for drying kaolin, clay, and kaolin. Our company has improved the new generation of kaolin/clay/bentonite dryers to achieve greater energy efficiency and reduce consumption.
Feed Particle Size: <= 50mm
Processing Capacity: 5-30t/h
Applications: Chemical, construction, metallurgy, and other industries
Applicable Materials: Kaolin, rare earths, bentonite, bauxite, and clay raw materials

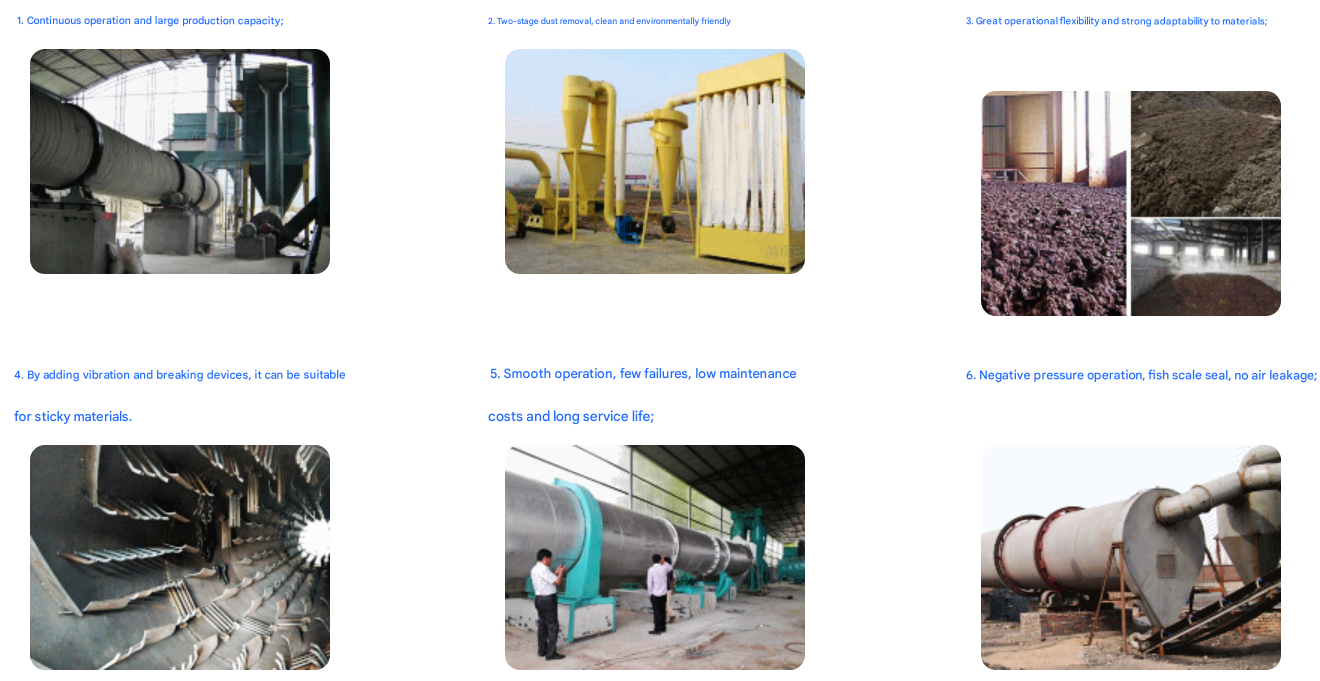

Advantages
Principle of working
The kaolin dryer's heat source comes from a combustion device. This dryer utilizes a downstream heating method. Therefore, the material to be dried enters the drum from the feed box and feed chute, where it is pushed backward by a spiral lifter.
Due to the dryer's inclined position, the material flows toward the rear end due to gravity and rotation. At the same time, the material is repeatedly lifted by the lifter, brought to the upper end, and then continuously dispersed downward, forming a uniform curtain of material within the drum. This allows for sufficient heat exchange with the hot air flow within the drum. This repeated dispersion gradually dries out the moisture contained in the material, achieving the desired drying effect.
Data
Model | Angle（%） | Rotation speed | temperature | Power | capacity（t/h） | weight |
Ф800x8000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.0 | 3.5 |
Ф800x10000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.5 | 4.5 |
Ф1000x10000 | 3-5 | 3-8 | ≤700 | 5.5 | 1.0-3.5 | 5.6 |
Ф1200x10000 | 3-5 | 3-8 | ≤700 | 7.5 | 1.8-5 | 14.5 |
Ф1200x12000 | 3-5 | 3-8 | ≤700 | 11 | 2-6 | 14.8 |
Ф1500x12000 | 3-5 | 2-6 | ≤800 | 15 | 3.5-9 | 17.8 |
Ф1800x12000 | 3-5 | 2-6 | ≤800 | 18 | 5-12 | 25 |
Ф2200x12000 | 3-5 | 1.5-6 | ≤800 | 18.5 | 6-15 | 33 |
Ф2200x18000 | 3-5 | 1.5-6 | ≤800 | 22 | 10-18 | 53.8 |
Ф2200x20000 | 3-5 | 1.5-6 | ≤800 | 30 | 12-20 | 56 |
Ф2400x20000 | 3-5 | 1.5-5 | ≤800 | 37 | 18-30 | 60 |
Ф3000x20000 | 3-5 | 1.5-5 | ≤800 | 55 | 25-35 | 78 |
Ф3000x25000 | 3-5 | 1.5-5 | ≤800 | 75 | 32-40 | 104.9 |
