- Sludge rotary dryer
Sludge dryers are widely used in the building materials, chemical, construction, and dye industries to dry electroplating sludge, copper sludge, printing and dyeing sludge, papermaking sludge, and domestic sewage sludge. They are particularly effective for electroplating and dyeing sludge.
sludge rotary dryer
Sludge dryers are widely used in the building materials, chemical, construction, and dye industries to dry electroplating sludge, copper sludge, printing and dyeing sludge, papermaking sludge, and domestic sewage sludge. They are particularly effective for electroplating and dyeing sludge. Our company's improvements have resulted in a new generation of sludge dryers that are even more energy-efficient and reduce consumption.
Feed Particle Size: <= 300mm
Processing Capacity: 5-60t/h
Applications: Building materials, chemical, construction, and dyeing industries
Applicable Materials: Electroplating sludge, printing and dyeing sludge, riverbed sludge, copper sludge, activated sludge, coal slime, and more.

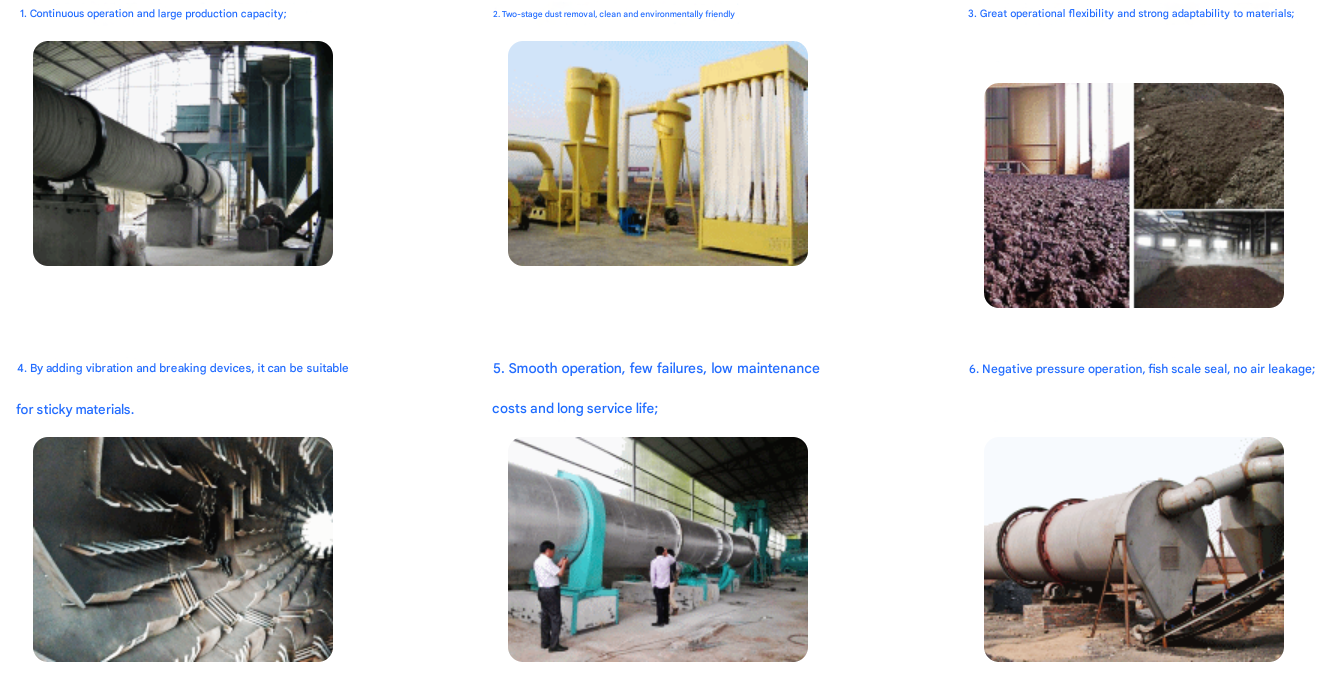

Advantages
Principle of working
The sludge dryer's heat source comes from a combustion device. This dryer utilizes a downstream heating method. Therefore, the material to be dried enters the drum from the feed box and feed chute, where it is pushed backward by the spiral skimmer. Due to the dryer's tilted position, the material flows toward the rear end due to gravity and rotation. At the same time, the material is repeatedly scooped up by the skimmer, brought to the upper end, and then continuously dispersed downward, forming a uniform curtain of material within the drum. This allows for sufficient heat exchange with the hot air flow within the drum. This repeated dispersion gradually dries out the moisture contained in the material, achieving the desired drying effect.
Data
Model | Angle（%） | Rotation speed | temperature | Power | capacity（t/h） | weight |
Ф800x8000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.0 | 3.5 |
Ф800x10000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.5 | 4.5 |
Ф1000x10000 | 3-5 | 3-8 | ≤700 | 5.5 | 1.0-3.5 | 5.6 |
Ф1200x10000 | 3-5 | 3-8 | ≤700 | 7.5 | 1.8-5 | 14.5 |
Ф1200x12000 | 3-5 | 3-8 | ≤700 | 11 | 2-6 | 14.8 |
Ф1500x12000 | 3-5 | 2-6 | ≤800 | 15 | 3.5-9 | 17.8 |
Ф1800x12000 | 3-5 | 2-6 | ≤800 | 18 | 5-12 | 25 |
Ф2200x12000 | 3-5 | 1.5-6 | ≤800 | 18.5 | 6-15 | 33 |
Ф2200x18000 | 3-5 | 1.5-6 | ≤800 | 22 | 10-18 | 53.8 |
Ф2200x20000 | 3-5 | 1.5-6 | ≤800 | 30 | 12-20 | 56 |
Ф2400x20000 | 3-5 | 1.5-5 | ≤800 | 37 | 18-30 | 60 |
Ф3000x20000 | 3-5 | 1.5-5 | ≤800 | 55 | 25-35 | 78 |
Ф3000x25000 | 3-5 | 1.5-5 | ≤800 | 75 | 32-40 | 104.9 |
