Chrome ore mining equipment
Chromium Ore Mining Equipment | Chromium Ore Mining Machinery primarily includes crushing equipment, grinding equipment, washing equipment, auxiliary equipment, screening and grading equipment, magnetic separation equipment, gravity separation equipment, drying and calcining equipment, etc. Based on the beneficiation process, these equipment is categorized into crushing, grinding, screening, sorting (selection), and dewatering machinery.
1. Chromium Ore Mining Equipment | Chromium Ore Mining Machinery - Crushing and Ore Beneficiation Equipment: Jaw crusher, hammer crusher, impact crusher, cone crusher, toothed roller crusher, double-roll crusher, etc.
2. Chrome Ore Mining Equipment | Chrome Ore Mining Machinery - Grinding and Ore Beneficiation Equipment: Cement Ball Mill, Conical Ball Mill, Ceramic Ball Mill, Energy-Saving Ball Mill, High-Energy Ball Mill, High-Fine Ball Mill, Grate Ball Mill, Overflow Ball Mill, etc.
3. Chrome Ore Mining Equipment | Chrome Ore Mining Machinery - Washing and Ore Beneficiation Equipment: SF Flotation Cell, BF Flotation Cell, XJK Series Flotation Cell, Full-Section Airlift Microbubble Flotation Cell, Agitator Flotation Cell, Spiral Classifier, Vacuum Filter, Dry Separator, Sand Washer, etc.
4. Chrome Ore Mining Equipment | Chrome Ore Mining Machinery - Ore Dressing Auxiliary Equipment: Vibrating Feeders, Trough Feeders, Pendulum Feeders, Mixing Buckets, Bucket Elevators, Belt Conveyors, Vibrating Feeders, Disc Feeders, High-Efficiency Thickeners, Disc Granulators, Ore Washers, Shakers, Spiral Chutes, Hydrocyclones, Jigs, Tailings Recyclers, Cement Mills, Raw Material Mills, MBS Rod Mills, etc.
5. Chrome Ore Mining Equipment | Chrome Ore Mining Machinery - Screening and Classification Equipment: Multi-Frequency Dewatering Screens, High-Frequency Screens, Circular Vibrating Screens, Linear Vibrating Screens, YK Series Circular Vibrating Screens, Drum Screens, Finished Product Screens, Spiral Classifiers, etc.
6. Chrome Ore Mining Equipment | Chrome Ore Mining Machinery - Magnetic Separation Equipment: Wet Magnetic Separators, Dry Magnetic Separators, High-Magnetic Field Magnetic Separators, Medium-Magnetic Field Magnetic Separators, Weak-Magnetic Field Magnetic Separators, River Sand Magnetic Separators, Wet Permanent Magnet Drum Magnetic Separators, etc.
7. Chrome Ore Mining Equipment | Chrome Ore Mining Machinery - Gravity Separation Equipment: Concentrators, Shakers, Chutes, Jigs, Water Jacket Centrifuges, Centrifugal Disc Separators, Heavy Medium Separation Equipment, etc.
8. Chrome Ore Mining Equipment | Chrome Ore Mining Machinery - Drying and Calcination Equipment: Dryers, Rotary Kilns, etc.
Chromium ore beneficiation can flexibly utilize different beneficiation processes based on the composition and final product standards. However, practice has proven that gravity separation is more suitable for most chromium ore separation. The chromium ore mining equipment and machinery used in its production line include jaw crushers, ball mills, jigs, shaking tables, spiral chutes, and other equipment. Appropriate equipment selection and scientific production line process design can help improve the grade of chromium concentrate, promote the resource utilization of chromium ore, generate higher economic profits for enterprises, and bring greater social benefits.

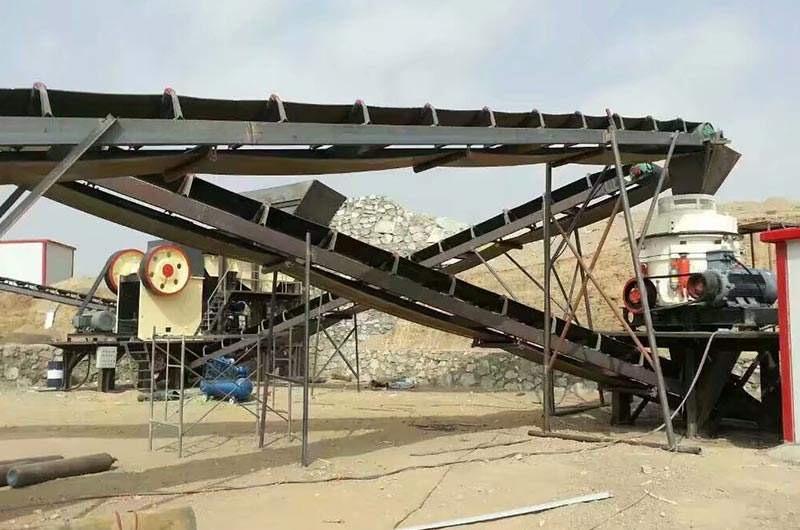

When a jaw crusher is in operation, an electric motor drives a belt and pulley, which, via an eccentric shaft, moves the movable jaw up and down. As the movable jaw rises, the angle between the toggle plate and the movable jaw increases, pushing the movable jaw toward the fixed jaw, thereby crushing or splitting the material. As the movable jaw descends, the angle between the toggle plate and the movable jaw decreases, and the movable jaw, driven by the pull rod and spring, moves away from the fixed jaw. The crushed material is then discharged from the bottom opening of the crushing chamber. As the motor rotates continuously, the movable jaw of the crusher performs periodic movements to crush and discharge materials, thus realizing automated batch production.
Chrome Ore Mining Equipment | Chrome Ore Mining Machinery Ball Mill: Material is fed from a feeder through a hollow feed shaft and evenly fed into the first chamber of the ball mill. This chamber is lined with stepped or corrugated linings and filled with steel balls of varying sizes. The centrifugal force generated by the rotation of the drum carries the steel balls to a certain height, where they fall, impacting and grinding the material. After coarse grinding in the first chamber, the material passes through a single-layer partition wall into the second chamber, which is lined with flat linings and filled with steel balls for further grinding. The powdered material is discharged through the discharge grate, completing the grinding process.
Chrome Ore Mining Equipment | Chrome Ore Mining Mechanical Concentrator Shaking Table: The beneficiation process of the shaking table is carried out on an inclined bed with multiple strips. Ore particles are fed into the table through a feed chute at the upper corner of the table. Simultaneously, a water trough provides horizontal flushing water. Consequently, the particles, driven by gravity, the impact of the horizontal water flow, and the inertia and friction generated by the reciprocating asymmetric motion of the table, are separated into layers according to specific gravity and particle size. They move longitudinally along the bed and transversely along the inclined surface. As a result, particles of varying specific gravity and particle size gradually flow downward in a fan-shaped pattern from side A to side B, discharging from different zones on the concentrate and tailings sides, ultimately being separated into concentrate, middlings, and tailings.

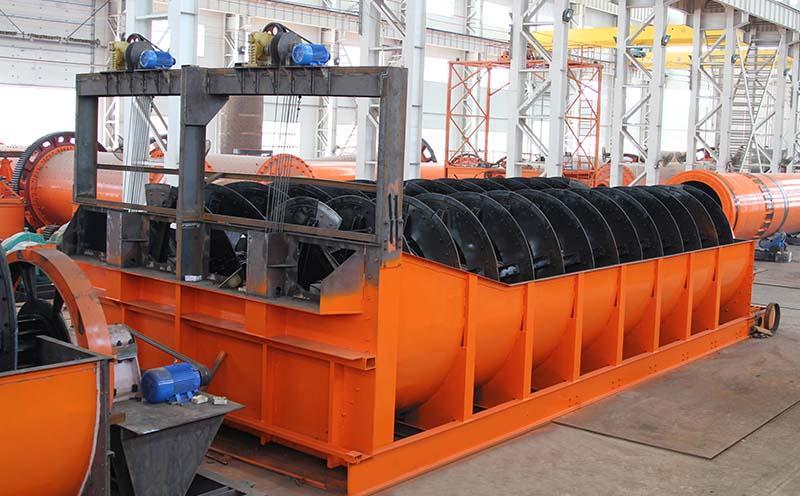

Chromium Ore Mining Equipment | Chromium Ore Mining Machinery Spiral Classifier: The spiral classifier uses the principle that solid particles of different sizes and specific gravities have different settling speeds in liquids. Fine ore particles float in the water and overflow, while coarse ore particles sink to the bottom of the tank. The spiral pushes the particles upward and discharges them to perform mechanical classification. It can filter the powder ground in the mill, then use the spiral vanes to rotate the coarse material into the mill feed port, and the filtered fine material is discharged from the overflow pipe.

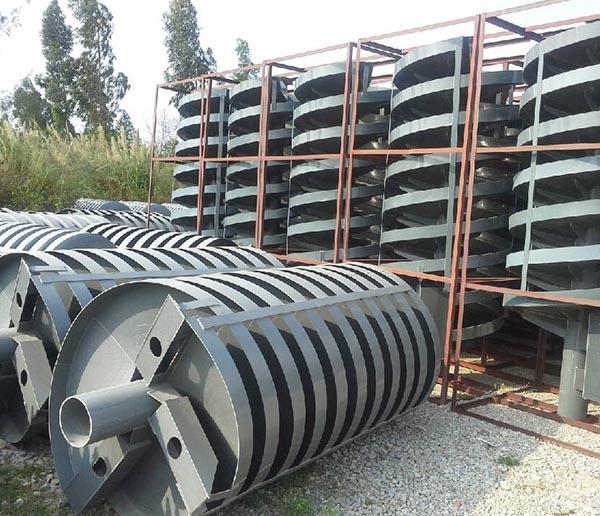

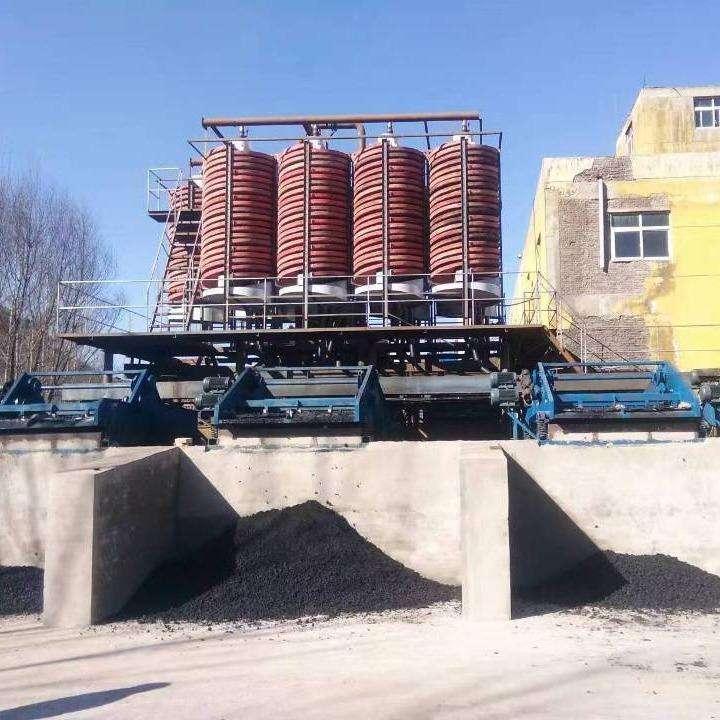

Chromium Mining Equipment | Chromium Mining Machinery Spiral Chute: As one of the most advanced mineral processing equipment, spiral chutes are widely popular within the mining machinery industry. Commonly used in mining and material selection, they offer advantages such as simple operation, high efficiency, and easy management. Chute beneficiation is a slope flow separation process. Slurry is fed into a chute or inclined surface with a certain slope. The water flow loosens and stratifies the ore particles, with the light minerals in the upper layer rapidly discharged, while the heavy minerals in the lower layer remain within the chute or are discharged at a lower speed from the bottom. These separate collections yield concentrate and tailings. Spiral chutes are lightweight, moisture-proof, rust-proof, and corrosion-resistant, highly adaptable to fluctuations in feed rate, concentration, particle size, and grade, and are silent. The separation process is stable and easy to control, with a wide range of feed concentration variations, high enrichment ratios and recoveries, a small footprint, low water consumption, a simple structure, no power requirements, a large processing capacity, easy installation and operation, and low investment and rapid returns.
Chromium Ore Mining Equipment | Chromium Ore Mining Mechanical Jigs: There are many types of jigging machines used in mineral processing. The most widely used in gravity separation plants is the diaphragm jig. Based on the location of the diaphragm, these types are categorized as: upper (side) moving diaphragm jigs; lower moving conical diaphragm jigs; side moving diaphragm jigs; compound vibration jigs; and circular jigs. Dynamic diaphragm jigs offer advantages such as a wide stroke adjustment range, adaptability to a wide range of feed sizes, uniform water agitation, stable bed formation, excellent separation performance, easy concentrate discharge, the ability to obtain both coarse and qualified concentrates in one operation, high productivity per unit area, and easy operation and maintenance. However, their disadvantages include small scale, low production capacity, and a large footprint, as the diaphragm chamber occupies half the machine body.
Chromium Mining Equipment | Chromium Mining Machinery Dewatering Screen: When the dewatering screen is in operation, two independent vibrators rotate synchronously in opposite directions. The centrifugal forces generated by the two eccentric masses add up in the direction of vibration, while the opposing centrifugal forces cancel each other out, forming a single excitation force in the direction of vibration, causing the screen box to move back and forth in a linear motion. The material on the screen, upon impact with the horizontal screen surface, experiences a continuous linear bouncing motion. The slurry falls below the screen as the material meets the screen surface, while the material exits through the outlet, achieving dewatering.
Chromium Mining Equipment | Chromium Mining Machinery selection generally requires configuring the appropriate beneficiation process and equipment based on the specific properties of the chrome ore. Chrome ore beneficiation primarily utilizes gravity separation and magnetic separation processes. Chrome ore concentrators (chrome ore water washing equipment) also primarily refer to gravity separation and magnetic separation equipment. South African chrome ore concentrators primarily utilize crushing, screening, washing, sorting, or heavy media separation methods and related equipment to process coarse, rich ore. The Don River concentrator in the Southern Kempirsai mining area of Kazakhstan, the Soviet Union, uses a heavy media-jigging-grinding-spiral concentrator-high-intensity magnetic separation process to separate chromium ore. The Difens concentrator in Oregon, USA, uses a process that includes shaking tables, ore washing, dry low-intensity magnetic separation, dry high-intensity magnetic separation, and flotation to process difficult-to-separate high-iron, low-chromium coastal placer ore.
Chromium ore mining equipment | Chromium ore mechanical beneficiation process methods: (1) Gravity separation: such as jig, shaking table, spiral chute, heavy medium cyclone, etc. (2) Magnetic electric separation: including high-intensity magnetic separation and high-voltage electric separation. (3) Flotation and flocculation flotation. (4) Combined selection: such as gravity separation and electric separation. (5) Chemical beneficiation: to treat extremely fine and difficult-to-separate poor chromium ores. Among the above chromium ore beneficiation process methods, gravity separation is mainly used in production, and shaking table and jig separation are often used. Sometimes the gravity separation concentrate is re-selected with weak magnetic separation or strong magnetic separation to further improve the grade of the chromium concentrate and the chromium-iron ratio.

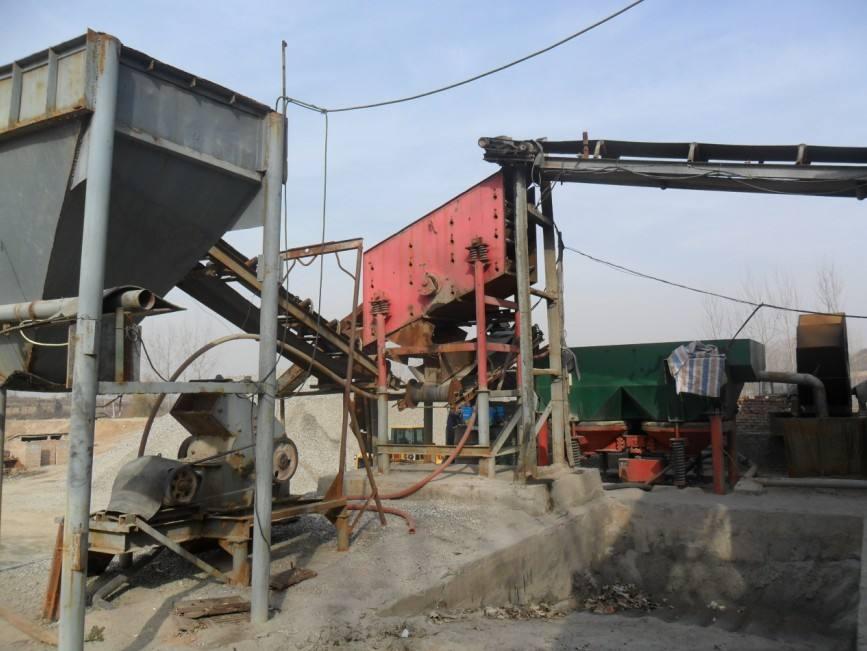

Chromium ore mining equipment | Chromium ore mechanical gravity separation production line The specific production process is: the chromium ore is fed from the raw ore bin through the ore feeder to the coarse crushing, then to the fine crushing, and finally to the powder ore bin. A feeder is installed below the fine ore bin, feeding the fine ore via a belt conveyor into the ball mill. The ball mill is equipped with a grinding head screen. The oversize material is returned to the ball mill for re-grinding, while the undersize material enters a spiral chute for roughing. The spiral chute roughing produces a portion of concentrate, the middlings are returned for re-selection, and the tailings enter the spiral chute for scavenging. The concentrate from the spiral chute scavenging is fed into the shaking table for concentrating, the middlings are returned for re-selection, and the tailings are discarded. The shaking table roughing concentrate forms another portion of the concentrate, the middlings are returned for re-selection, and the shaking table tailings are discarded. All concentrates enter the sedimentation tank for dewatering. The spiral chute scavenging tailings and the shaking table tailings are combined into the total tailings, which enter the tailings sedimentation tank, where a portion of the tailings is precipitated and then enters the tailings pond. The clarified water from the tailings pond is recycled.
The specific production process of the chromium ore mining equipment and magnetic separation production line is as follows: the mined chromium ore is initially crushed by a jaw crusher. After being crushed to a suitable fineness, it is evenly fed by an elevator and feeder into a ball mill, where the ore is crushed and ground. The fine ore milled in the ball mill enters the next process: classification. A. When the mineral mixture that has been graded passes through the magnetic separator, due to the different specific magnetic susceptibilities of the various minerals, magnetic and mechanical forces separate the magnetic materials in the mixture. B. After the mineral mixture passes through the magnetic separator and is separated by a mixing drum, the mineral material, due to its high moisture content, must be initially concentrated in a concentrator and then dried in a dryer to obtain dry mineral material.
The original design of the Donhe Chromium Ore Concentrator's chromium mining equipment and chromium mining machinery process flow includes the following operations: 100-10mm ore is separated using a two-stage heavy medium concentrator (drum concentrator) with a medium density of 2.7-3.31 g/cm³. The middlings from the heavy medium concentrator are crushed to 10-0mm and then combined with the 10-0mm ore for stockpiling. The 10-3mm and 3-0mm ore grades are separated using jigs. The jigging middlings are then ground to 0.5-0mm and separated using a spiral concentrator. The 0.5-0mm ore slime is separated using a shaking table. After extensive research and commissioning, improvements and refinements were made in 1983. To enhance the reliability of the jig separation process, a second backup system was installed, significantly reducing plant downtime due to malfunctions. High-efficiency jigs were introduced to improve jig separation efficiency, particularly in the 3-5 mm range. After regrinding the jig middlings, a CB3-1500 (+1500 mm) spiral concentrator was used instead of a +600 mm spiral concentrator, further increasing the separation efficiency. A high-field magnetic separator was used to recover the 0.25 mm slime separated from the shaker and spiral concentrator tailings. Following these improvements, the Don River concentrator's process flow met and exceeded design specifications for output, quality, and other process indicators by 1983. When the proportion of difficult-to-select disseminated ore in the original ore exceeds the usual proportion (20% to 25%) and reaches 30%-35% (up to 44%), the first stage of heavy medium separation must be used so that the designed process can ensure that the chromium oxide content in the concentrate reaches the specified content and reduce the loss of valuable components in the tailings.
To extend the service life of chrome mining equipment and machinery, it's crucial to operate the equipment correctly and perform regular maintenance and overhaul. Here are six key details to extend equipment life:
1. Operators should be familiar with the equipment and comply with factory regulations regarding operation, maintenance, safety, and hygiene.
2. Before beginning work, operators should read the duty log and inspect the equipment, checking for loose bolts and damage to the machine surface.
3. Equipment startup should follow the process sequence; starting under load is strictly prohibited.
4. During operation, the equipment should be regularly monitored. If any abnormalities occur, they should be promptly addressed according to the relevant plan or shut down for maintenance.
5. Shutdowns should follow the process sequence, and the area surrounding the equipment should be cleaned after shutdown.
6. Regular and mandatory maintenance must be performed. Never skip maintenance due to tight construction schedules.
What is the price of chrome mining equipment/chrome mining machinery? Since it's not just a single piece of equipment, the price range is wider, ranging from tens of dollars to hundreds of dollars. Different equipment configurations and different manufacturers will result in different pricing standards. The main factors to consider are as follows:
1. Equipment Configuration
The configuration of chrome mining equipment/chrome mining machinery affects its price. Higher-quality, durable equipment will result in higher prices.
2. Manufacturer Selection
The quality of chrome mining equipment/chrome mining machinery varies from manufacturer to manufacturer, and the manufacturer's pricing standards will also vary. Customers should prioritize the manufacturer, especially the model.
3. Output
The output of chrome mining equipment/chrome mining machinery is closely related to the equipment model. Higher output requires a larger series of equipment, resulting in higher prices for each piece of equipment and a higher overall production line price. This is a general rule.
Chromium Mining Equipment | A chrome mining machinery manufacturer focused on technological innovation, we have established research institutes for ore dressing machinery, crushing machinery, grinding machinery, building materials equipment, and bio-new energy equipment. Our main products include chromium ore dressing equipment, limonite ore dressing equipment, hematite ore dressing equipment, gold ore dressing equipment, manganese ore dressing equipment, bauxite ore dressing equipment, kaolin ore dressing equipment, tin ore dressing equipment, gravity separation equipment, flotation equipment, and magnetic separation equipment. These equipment can help users improve ore grade and extract valuable minerals from low-grade ores. We welcome customers to purchase our equipment and are confident that our equipment, processes, and technologies will satisfy you. Through long-term technical research and development and exchange, our products have earned wide recognition and acclaim in the international market for their technology and quality. Our products are exported to over 120 countries and regions, including the United States, Russia, Kazakhstan, Turkey, Iran, South Africa, Ethiopia, Egypt, Malaysia, India, Australia, and Chile. The company always focuses on customer needs and takes customer satisfaction as its goal, and is committed to providing global customers with complete solutions and "turnkey" projects; relying on an advanced new customer service platform, it provides customers with full-process, all-weather one-stop and nanny-style services.
