Specularite mining equipment
Spectrum Iron Ore Mining Equipment | Spectrum Iron Ore Mining Machinery's main products include: jaw crusher, hammer crusher, roller crusher, impact crusher, vertical crusher, environmentally friendly and energy-saving cone bearing ball mill, vibrating screen, automatic sand return spiral classifier, environmentally friendly and energy-saving flotation machine, mining agitator, feeder, thickener, mining hoist, mining conveyor, jig, spiral chute, mineral processing shaking table, ore washing machine and other equipment.

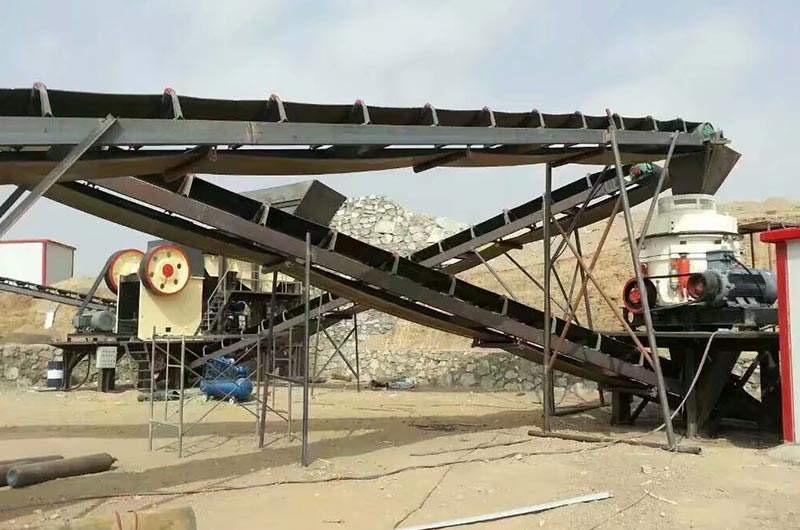

Specularite Mining Equipment | Specularite Mining Machinery - Crushing Equipment. Generally, for a complete specularite beneficiation production line, the specularite ore requires initial crushing due to its excessively large particle size. When designing this production line, secondary crushing is generally employed. For the coarse crushing stage, a PE deep-chamber jaw crusher can be used. For the fine crushing, since the particle size has already been crushed once, a cone crusher or cone-type crusher is often used in the secondary crushing process.

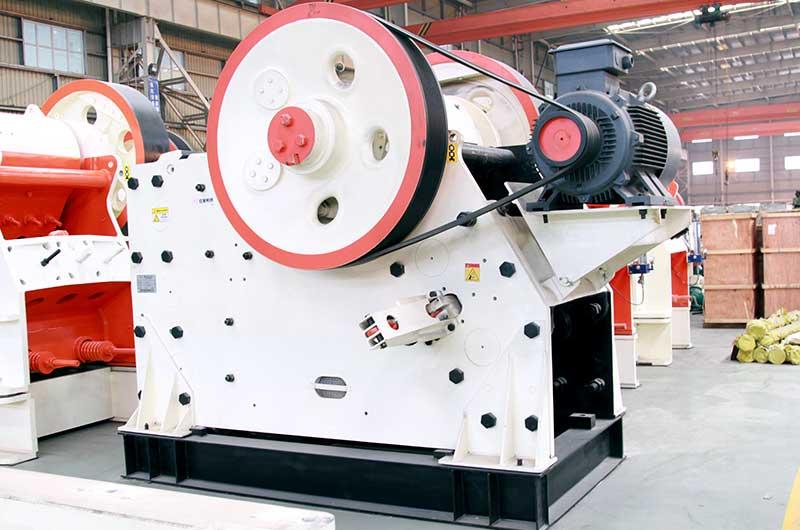

Specularite Mining Equipment | Specularite Mining Machinery - The specularite jaw crusher is a newly developed crushing equipment with a longer service life than traditional equipment. Iron ore jaw crushers are generally classified according to the motion characteristics of the movable jaw: simple swing, complex swing, and combined swing. Each type of iron ore jaw crusher features smooth operation and simple operation. The specularite jaw crusher crushes materials through the cyclical motion of the movable jaw. It uses a driven extrusion method, with an electric motor driving a belt and pulley, and an eccentric shaft driving the movable jaw in a fixed up and down reciprocating motion. When the movable jaw rises, the angle between the toggle plate and the movable jaw increases, pushing the jaw plate toward the fixed jaw plate, reducing the volume of the material. The materials are brought closer together and compressed, resulting in multiple crushing processes such as squeezing, rubbing, and grinding. When the movable jaw moves downward, the angle between the toggle plate and the movable jaw decreases. The movable jaw plate, driven by a tie rod and spring, moves away from the fixed jaw plate. The material moves downward under its own weight and is discharged from the crushing chamber.

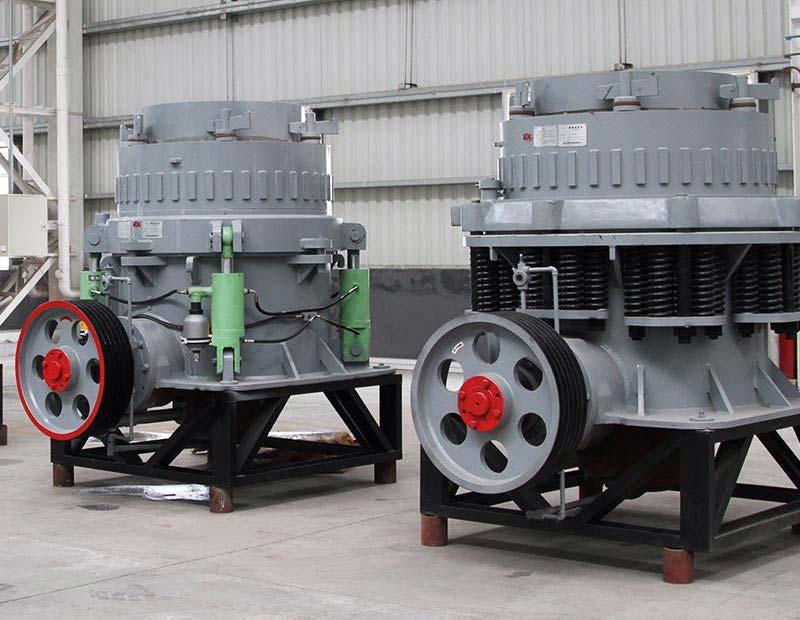

Specigulite Mining Equipment | Specigulite Mining Machinery - The main structure of a specigulite cone crusher includes a horizontal shaft, large and small bevel gears, a main shaft, an eccentric sleeve, spherical bearings, a movable cone assembly, a fixed cone assembly, and a mainframe, resulting in a simple and compact structure. The body of the specigulite cone crusher rests on a spring-loaded spring, and the crusher's working section consists of the fixed and movable cones. The working surfaces of both cones are fitted with wear-resistant liners, and the space between the liners forms the crushing chamber. A vibrator is mounted on the sliding bearing of the movable cone shaft. Driving force is transmitted to the vibrator via a belt and transmission device, causing it to rotate around the center of the movable cone, generating centrifugal force. This centrifugal force forces the movable cone on the spherical support to perform a pendulum motion around its center, repeatedly squeezing and impacting the material within the crushing chamber, completing the material crushing process.

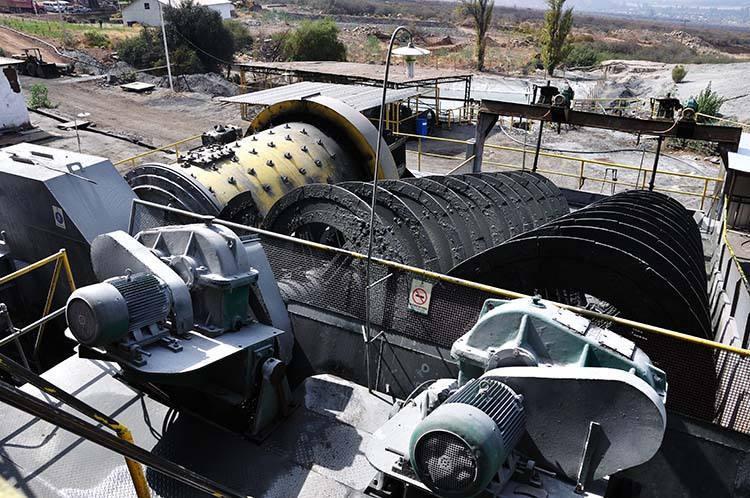

Speculumite Mining Equipment | Speculumite Mining Machinery - Grinding and Classifying Equipment. Simple pre-crushing cannot directly lead to sorting. Like other minerals, it generally requires grinding. During grinding, a ball mill is generally used for speculumite grinding. As for the number of stages, two stages are generally selected, but this also needs to be selected based on the user's actual production needs. The classification equipment uses a spiral classifier to classify different particle sizes. Therefore, at this stage, speculumite beneficiation equipment requires the participation of a ball mill and a spiral classifier.

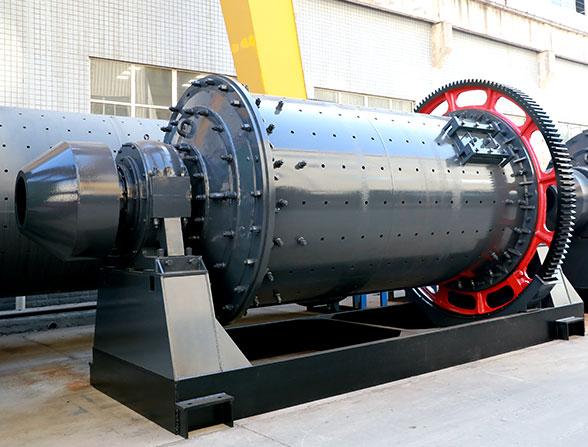

Specugite Mining Equipment | Specugite Mining Machinery - The Specugite Ball Mill consists of a feeder, discharger, rotary unit, and transmission (reducer, small transmission gear, motor, and electronic control). The hollow shaft is cast steel with a removable inner lining. The large rotary gear is hobbed from a casting, and the cylinder is lined with a wear-resistant liner for excellent wear resistance. This machine operates smoothly and reliably. Iron ore is fed into the hollow cylinder through the hollow shaft neck for grinding. The cylinder of the specularite ball mill is filled with steel balls of various diameters. When the cylinder rotates at a certain speed around the horizontal axis, the steel balls and raw materials in the cylinder are ejected or rolled down by the centrifugal force and friction force. As the cylinder reaches a certain height, when their own gravity is greater than the centrifugal force, they break away from the inner wall of the cylinder and fall down, and the crushed ore is knocked down due to the impact force. At the same time, during the rotation of the iron ore ball mill, the sliding motion of the steel balls against each other also grinds the iron ore raw materials, and the ground materials are discharged through the hollow shaft neck.
Specularite Mining Equipment | Specularite Mining Machinery - The AM30 jig and 2LTC-912/4 jig are used to process coarse specularite ore, offering high beneficiation efficiency and excellent results. They are widely used in Hainan, Xinjiang, and other regions. The trapezoidal jig is primarily used to process fine specularite ore with a particle size of 0-8mm, produced during the crushing process. Its high beneficiation capacity meets the needs of large and medium-sized specularite concentrators.
Specularite mining equipment | Specularite mining machinery - Specularite magnetic separator is mainly composed of permanent magnetic cylinder, dewatering trough, frame, transmission device, feed trough, concentrate trough, tailings trough, magnetic system adjustment device, etc. A buffer table is provided under the feed trough, and the tailings outlet is set between the lowest point of the dewatering trough and the concentrate outlet. Its advantage is that it is conducive to the roughing and concentrating of strong magnetic minerals with a particle size of 0-8 mm, but the particle size is coarse and the recovery rate is high. The magnetic system angle can reach 140 degrees -170 degrees, and the separation area is long.
Specularite Mining Equipment | Mechanical Separation of Specularite Ore. The main beneficiation methods for specularite ore are gravity separation and magnetic separation. Gravity separation can be used for the beneficiation of coarse-grained specularite ore, while magnetic separation is used for the beneficiation of fine-grained specularite ore. The specularite ore is first roasted to change its magnetic permeability, converting weakly magnetic iron ore into magnetic iron ore. Magnetic separation is then performed to achieve good beneficiation indicators. However, the roasting-magnetic separation process is complex and requires high equipment investment, making it difficult for small and medium-sized beneficiation plants to meet these requirements.
Specularite Mining Equipment | Mechanical Separation of Coarse-Grained Specularite Ore. Gravity separation process: Coarse-grained specularite ore is crushed and screened to separate the concentrate and gangue. It then enters a jig for separation to obtain pure specularite concentrate and gangue tailings. The most commonly used specularite beneficiation equipment is a jig. The specific model and type can be selected based on the user's production needs. This type of specularite beneficiation process can easily complete the washing and purification of coarse, medium, and fine specularite with a particle size of 0-30mm. In this specularite beneficiation process, the equipment used is generally a jig to meet production requirements, and the required equipment types are very limited.
Specularite Mining Equipment | The theoretical basis of mechanical gravity separation in specularite mining is the principle of gravity separation. Mineral particles of different specific gravities settle at different rates in a vertically alternating medium flow: heavier mineral particles settle faster, while lighter minerals settle slower. This difference allows gravity separation of minerals of varying specific gravities. Three main factors determine whether a mineral is suitable for gravity separation:
1. Specific gravity difference. Is there a significant specific gravity difference between the useful mineral and the waste rock? A specific gravity difference of less than 0.5 is considered difficult to separate, a specific gravity difference between 0.5 and 1 is considered easy to separate, and a specific gravity difference greater than 1 is considered easy to separate.
2. Specific gravity separation. Specific gravity separation refers to the degree of separation between the useful mineral and the waste rock. Any separation method requires a high specific gravity separation between the useful mineral and the waste rock. A high specific gravity separation can achieve high mineral processing recoveries and concentrate grades.
3. Mineral particle size during specific gravity separation. Gravity separation offers high efficiency and excellent results, but it has specific particle size requirements. Minerals larger than 50mm cannot be gravity separated, and minerals smaller than 50 mesh have poor recovery rates when separated.
Based on these factors, most specularite can be separated and purified using mechanical gravity separation methods. After crushing and screening to achieve a high degree of monomer dissociation, the minerals of different particle sizes are then graded and jigged to produce specularite concentrates of varying particle sizes. The equipment used primarily includes crushers, vibrating screens, and jigs, effectively separating iron ore concentrates ranging from 0 to 50mm.
Specularite mining equipment | Specularite mining mechanical gravity separation production line process: Specularite is mostly in a dense crystalline state and is unevenly embedded in the ore, and the embedded particle size is relatively coarse. Generally, monomer dissociation can be achieved by crushing. Most of the specularite monomers can be dissociated through crushing, screening and other processes, and then purified through gravity separation methods and equipment. Most of the purification of specularite does not involve grinding, but only goes through crushing and screening processes, and then enters the jig gravity separation equipment for gravity separation and purification. For most specularite, such a mineral processing process can achieve good mineral processing effects. In actual production, the mineral processing and purification of specularite are carried out in a coarse-grained state. One reason is that most of the specularite has been dissociated in the coarse-grained state, and there is no need for further fine crushing or grinding. Secondly, because specularite is fragile, the crushing or grinding process produces a large amount of powdered ore, which can easily cause loss in the gravity separation process. Therefore, specularite beneficiation typically adopts a crushing-screening-jigging-dewatering process. Jigs can process specularite with particle sizes of 0-50mm, ensuring both efficiency and effectiveness.
Specularite Mining Equipment | Mechanical Separation of Fine-Grained Disseminated Specularite Magnetic Separation Process: Simple crushing and screening are insufficient to separate the specularite from the gangue. Sometimes, fine grinding is required to achieve this separation. Therefore, this type of specularite cannot be purified by gravity separation, as the particle size of the ore after separation exceeds the specified selection size of the gravity separation equipment. Therefore, it can only be purified by high-intensity magnetic separation or magnetic roasting specularite beneficiation processes.
The process for the magnetic separation line for specugerite mining equipment and mechanical separation is as follows: The mined ore is initially crushed in a jaw crusher. After being crushed to a suitable fineness, it is evenly fed via an elevator and feeder to an energy-saving ball mill, where it is crushed and ground. The fine ore from the ball mill enters the next step: classification. A spiral classifier cleans and classifies the ore mixture, leveraging the principle that solid particles with different specific gravities settle at different rates in liquid. The cleaned and classified mineral mixture then passes through a magnetic separator, where magnetic and mechanical forces separate the magnetic materials in the mixture due to the different specific magnetic susceptibilities of the various minerals. After initial separation in the magnetic separator, the mineral particles are fed to a flotation cell, where different reagents are added based on the mineral's characteristics to separate the desired mineral from the rest. Once the desired mineral is separated, it undergoes a preliminary concentration in a concentrator, as it contains a large amount of water. It is then dried in a dryer to obtain the dry mineral.
Our company is a high-tech enterprise specializing in the research and production of pulverization engineering technology products. Our high-efficiency crushing, fine crushing, screening, powder separation, and various new high-strength, tough, and wear-resistant material accessories are all at the domestic leading level. Our main mineral processing equipment includes: crushers, ball mills, magnetic separators, flotation machines, classifiers, dryers, sand making machines, stone production lines, slag processing, cement equipment, and other products. Our complete mineral processing equipment mainly includes crushing and screening equipment; grinding equipment; magnetic separation, flotation, classification, gravity separation, cyanidation, and other mineral processing equipment.
