Tungsten mining equipment
Tungsten Mining Equipment | Tungsten mining machinery primarily includes jaw crushers, cone crushers, vibrating screens, heavy medium concentrators, gravity separation equipment, flotation equipment, magnetic separation equipment, electrostatic separation equipment, and belt conveyors. Wolframite processing primarily relies on gravity separation equipment, while scheelite processing primarily relies on flotation equipment. Most wolframite ores in my country are easily concentrating ores, while scheelite ore has a complex composition and is mostly difficult to concentrating. This, coupled with its low grade, has prevented large-scale development. Furthermore, tungsten oxides and tungsten sintering are currently unrecoverable.
Tungsten mining equipment | Tungsten mining machinery is a production line equipment for beneficiation and purification of tungsten ore. The configuration of tungsten beneficiation production line equipment is mainly determined by the properties of the tungsten ore. In general, tungsten ore can be divided into scheelite and wolframite, and their beneficiation methods are somewhat different. Therefore, tungsten beneficiation production lines are also divided into different types. Scheelite beneficiation production lines are mainly flotation production lines, and wolframite beneficiation production lines are mainly gravity separation production lines. However, due to the different properties of the ore, gravity separation production lines are also completely feasible for the beneficiation of coarse-grained scheelite.
Scheelite has good natural floatability, and is mostly fine-grained and impregnated with a low content. Therefore, the most commonly used tungsten mining equipment | tungsten mining machinery is the flotation production line, which recovers scheelite from low-grade scheelite to achieve the purpose of mineral processing and purification. The scheelite flotation production line is mainly composed of crushers, ball mills, classifiers, mixing tanks, flotation machines, concentrators, filter presses and other equipment. The mineral processing process is complex, the equipment investment is huge, and the production cost is also high, but the mineral processing indicators are good.
Tungsten Mining Equipment | Tungsten Mining Machinery Flotation Scheelite Production Line Process: Large scheelite ore is evenly fed to a jaw crusher for crushing by a vibrating feeder. Qualified scheelite is then sent to a ball mill for further grinding to achieve a high-quality tungsten ore powder. After thorough mixing in a mixing drum, it is sent to a flotation cell where appropriate collectors and depressants are added to produce a high-grade tungsten concentrate. Finally, it is sent to a concentrator for concentration and then to a dryer for final drying.
Tungsten Mining Equipment | Tungsten Mining Machinery - Scheelite beneficiation equipment is divided into flotation equipment and gravity separation equipment. Flotation equipment includes crushers, ball mills, classifiers, and flotation cells. Gravity separation equipment includes crushers, vibrating screens, rod mills, jigs, dewatering screens, etc.
Tungsten Mining Equipment | Tungsten Mining Machinery - Scheelite Gravity Separation Lines are tailor-made for coarse-grained, interbedded scheelite. They are less effective for fine-grained, disseminated scheelite. Scheelite gravity separation production primarily consists of equipment such as a crusher, vibrating screen, rod mill, jig, and dewatering screen. Gravity separation lines separate scheelite based on the specific gravity difference between the scheelite and the gangue. They offer simple processing, low equipment investment, low production costs, and high efficiency, but their performance is lower than that of flotation lines.
Wormite, also known as ferromanganese tungsten, has a weak magnetic property, a specific gravity of 7.1-7.5, and is brittle. Wolframite is primarily processed by gravity separation, supplemented by high-intensity magnetic separation. Wolframite is generally coarsely distributed within the ore, so gravity separation is the primary method for its beneficiation. Jigs, shakers, and other mining equipment are used to recover tungsten from the ore. High-intensity magnetic separation is then used to recover the wolframite slime from the gravity separation tailings. The typical wolframite beneficiation process involves crushing the ore in a crusher before grinding it in a rod mill. The ground product then flows through a chute into a jig for gravity separation. For coarse wolframite, gravity separation directly yields a concentrate. For finer wolframite, the jig gravity separation process is used for roughing, discarding as much tailings as possible while maintaining a high recovery rate. The jig's coarse concentrate is then ground in a ball mill and refined on a shaker. The shaker tailings are then subjected to high-intensity magnetic separation to recover the wolframite slime.
Jigs and shaking tables are the most commonly used equipment in gravity separation operations. Jigs are particularly important for separating coarse and medium-sized wolframite ore. Ore is often screened and graded before being jigged. To reduce slime formation, jigs are incorporated into the grinding cycle to recover the dissociated tungsten ore as soon as possible. Tungsten concentrate recovered by jigs generally accounts for over 50% of the plant's total recovery rate.

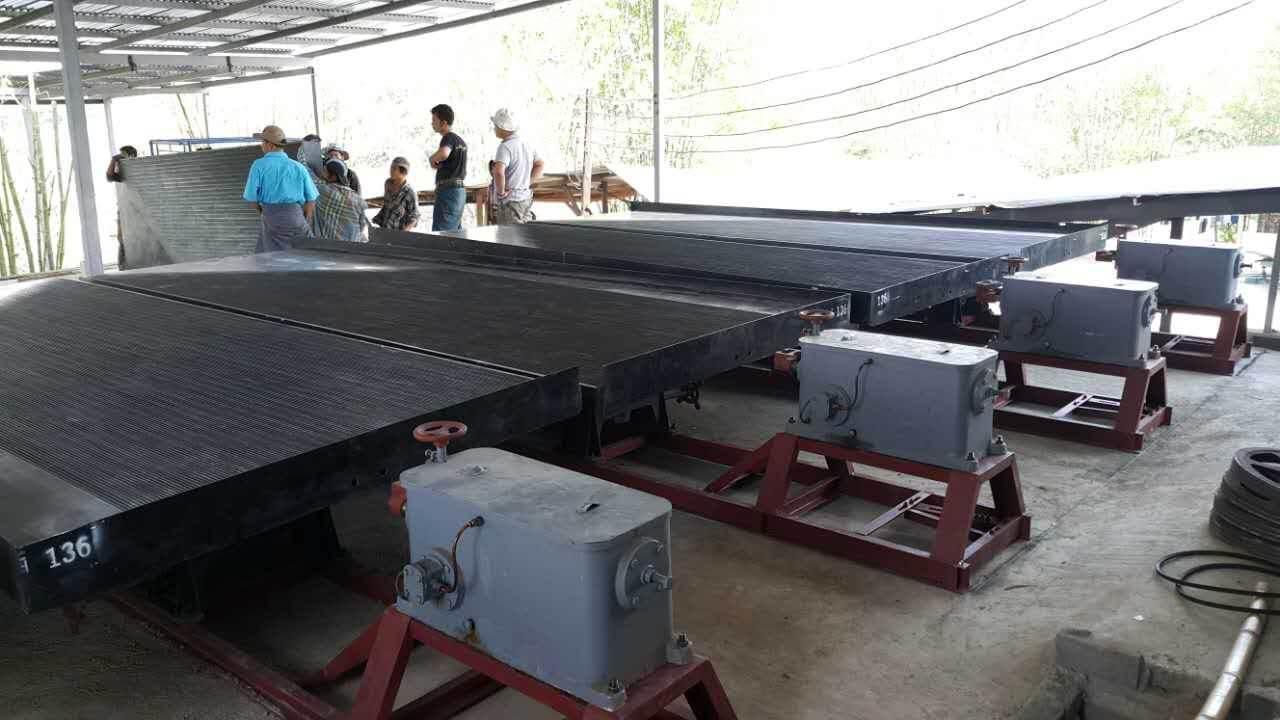

Shaking tables are suitable for separating fine-grained ore, offering the advantage of high enrichment ratios. To achieve optimal separation results, rigorous pre-separation grading is essential. Concentrators typically use hydraulic classifiers.
Main equipment for wolframite separation includes crushers, rod mills, jigs, ball mills, shaking tables, and high-intensity magnetic separators. The specific equipment combination to complete the beneficiation and purification of wolframite needs to be determined according to the specific properties and characteristics of wolframite.
The beneficiation process for wolframite using tungsten mining equipment and machinery primarily consists of five steps: roughing, grinding, gravity separation, concentrating, and fine sludge treatment.
1. Roughing Stage
Roughing is usually done by hand, where wolframite is selected from the raw ore based on its appearance. This stage requires no tungsten mining equipment or machinery; only experienced workers can visually identify the ore.

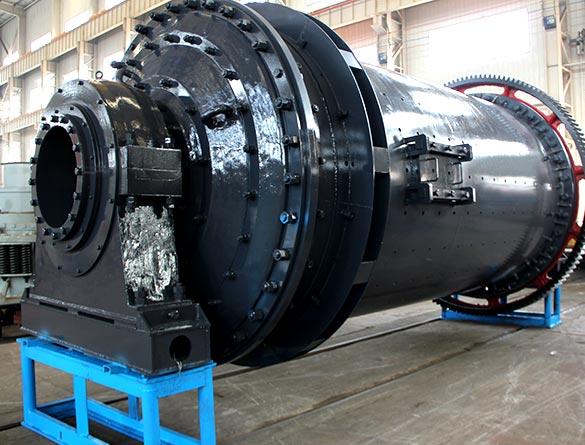

2. Grinding Stage - Rod Mill
Grinding is an essential step in the ore beneficiation process. However, tungsten ore is brittle and prone to over-grinding during grinding, so multi-stage grinding is a common treatment method. Rod mills are preferred for grinding tungsten ore. Firstly, they prevent over-grinding and secondly, they produce uniform ore particles that meet the feed size for gravity separation. Gravity separation plants with coarse wolframite intercalation typically utilize one or two rod mills, along with a jigging and vibrating screen to form a closed circuit. Since most scheelite deposits are located abroad, rod mills are often used. When the particle size is greater than 0.3 mm, one or two stages of grinding are used. When the particle size is less than 0.3 mm, one stage of grinding or a two-stage grinding process consisting of a rod mill and a ball mill is used.
3. Gravity Separation Stage - Jigs and Shakers
Wormite has a high specific gravity, making it ideal for gravity separation. Jigs and shakers are suitable equipment for gravity separation. Tungsten Mining Equipment | Tungsten Mining Machinery first screens the ore that passes grinding into coarse, medium, and fine grades, which are then separated using a jig. The fine ore is then jigged and separated using a shaker. After the coarse and medium ore are processed, they are ground again and separated again, forming a continuous cycle. Shakers are used to separate medium and fine tungsten ore. The tailings from the shaker separation can be discarded.
4. Concentration Stage - Magnetic Separator
After gravity separation, the coarse tungsten concentrate still contains valuable metals such as tin, molybdenum, bismuth, copper, zinc, tantalum, and niobium. These metals cannot be discarded, so further concentrating is necessary. Although magnetic separation can be performed dry or wet, dry separation is generally required for tungsten ore magnetic separation. Tungsten Mining Equipment | Tungsten Mining Machinery separates coarse wolframite using a dry magnetic separator. After drying, the coarse concentrate is fed into the magnetic separator to produce pure tungsten concentrate. However, the tailings still contain a relatively high amount of tungsten, so remember to perform multiple sweeping and separations.
5. Fine Mud Treatment
The fine mud of wolframite contains various associated metallic minerals. Treatment depends on the properties of the materials present. Tungsten Mining Equipment | Tungsten Mining Machinery selects a separation process, including gravity separation, flotation, magnetic separation, and electrostatic separation. One or a combination of these processes can be used to recover the tungsten ore and useful associated ores.
So, what is the price of tungsten mining equipment and machinery?
1. First, prices are volatile. They depend on many factors, especially the volatility of the market and economy, which can cause significant price fluctuations for tungsten processing lines.
2. Second, prices are volatile. Different equipment will result in slightly different production line configurations, so the price of a tungsten processing line varies.
3. Finally, prices are uncertain. The price of the equipment will affect the price of the tungsten processing line, so the price of the line itself is also uncertain.
Tungsten Mining Equipment and Machinery Maintenance and Repair Methods:
First, the bearings of tungsten mining equipment and machinery bear the entire load of the machine. Therefore, good lubrication plays a crucial role in bearing life, directly impacting the machine's operating efficiency and life expectancy. Therefore, lubricant injection must be clean and the seals must be good. Secondly, the machine must be kept clean and free of contact with corrosive chemicals to avoid collisions. Finally, routine inspections and maintenance of tungsten mining equipment and machinery are essential. Inspection results should be recorded, including not only past records, repairs, and changes, but also daily usage and workload records. This allows for analysis and diagnosis of mechanical failures, allowing for timely and accurate elimination of potential faults. The strengths and weaknesses of the machine and equipment's performance significantly impact project progress and cost. In the process of using mechanical equipment, mechanical and environmental factors directly affect the performance of the two main mechanical equipment. Machinery and equipment are used to improve performance, and the mechanical and environmental management of the two main factors must be strengthened. In short, if we want the mineral processing equipment to serve us for a long time, in addition to choosing a reputable mineral processing equipment manufacturer, we also need everyone to maintain it carefully.
The development of tungsten mining equipment and machinery is synchronized with the development of tungsten beneficiation processes. The process is the driving force, while the equipment is the foundation. The emergence of a new type of tungsten mining equipment often brings about changes in beneficiation processes. The technical level of the equipment is not only a prerequisite for the level of process, but also directly affects the smooth operation and application of the production process. Advances in science and technology, the interpenetration of various scientific disciplines and the integration of various industries, the continuous emergence of new structures, new materials, new technologies, and new processing techniques, and the widespread application of mechatronics and automatic control technologies have strongly promoted the continuous innovation of beneficiation equipment and its development towards high efficiency and energy conservation.
The tungsten mining equipment and tungsten mining machinery produced by our company are not only low-priced and reliable in quality, but our factory also provides users with comprehensive and comfortable pre-sales, in-sales and after-sales one-stop services, such as providing users with free mineral processing equipment installation, commissioning and technical training. If any quality problems occur in the operation of tungsten ore processing equipment, our company will propose reasonable solutions to users as soon as possible. In case of serious problems, we will send professional personnel to rush to the site to solve them in person to ensure that the interests of users are maximized.
Our company is a large-scale, high-tech, heavy-duty machinery manufacturer in Henan Province. With strong technical expertise and extensive experience in mineral processing, we offer a wide range of equipment, including magnetite, hematite, limonite, steel slag, fly ash, manganese, zircon, wolframite, scheelite, chromite, molybdenum, lead-zinc, gold, silver, copper, aluminum, and sand-making equipment. We warmly welcome friends from all walks of life to visit our factory for business discussions.
